Traditional Tilt Tray Sorter System

Traditional Tilt Tray Sorter System

Mantissa’s Tilt Tray Sortation System is a tried-and-true solution for sorting a wide range of products in various industries. Our system is designed to accurately and efficiently sort products of different sizes, weights, and shapes, making it an ideal choice for any business looking to optimize their sorting processes.

Traditional Tilt Technology

Mantissa’s Traditional Tilt-Tray Sorter utilizes the latest Third Generation Scorpion® sorter Platform. Built to be dependable and reliable, with simplicity in design. The Traditional tilt is a workhorse in the industry and can handle bags and boxes, which range from 3”sq to 72” long, and 6oz. to 150Lbs. Tray size and pitch are configured to average product sizes, as larger items can be handled across multiple trays. High throughput capacity can be achieved with multiple pitch configurations and operating speeds of up to 2.3m/s, while maintaining a less than 70db operational environment.

Features and Benefits

Mantissa is a Tilt Tray Sorter System manufacturer offering a range of features and benefits that make our system an excellent choice for businesses of all sizes. Some of the key advantages of our system include:

  • High accuracy: Our system uses advanced sensors and scanners to ensure products are sorted accurately and efficiently.
  • Flexible configuration: The system can be customized to meet the specific needs of your business, including the number of lanes, tray sizes, and sorting criteria.
  • Easy maintenance: Our system is designed for easy maintenance, with minimal downtime required for repairs or upgrades.
  • Scalability: The system can be easily expanded as your business grows, allowing you to increase sorting capacity without investing in a whole new system.

How our Tilt Tray Sorter System Works

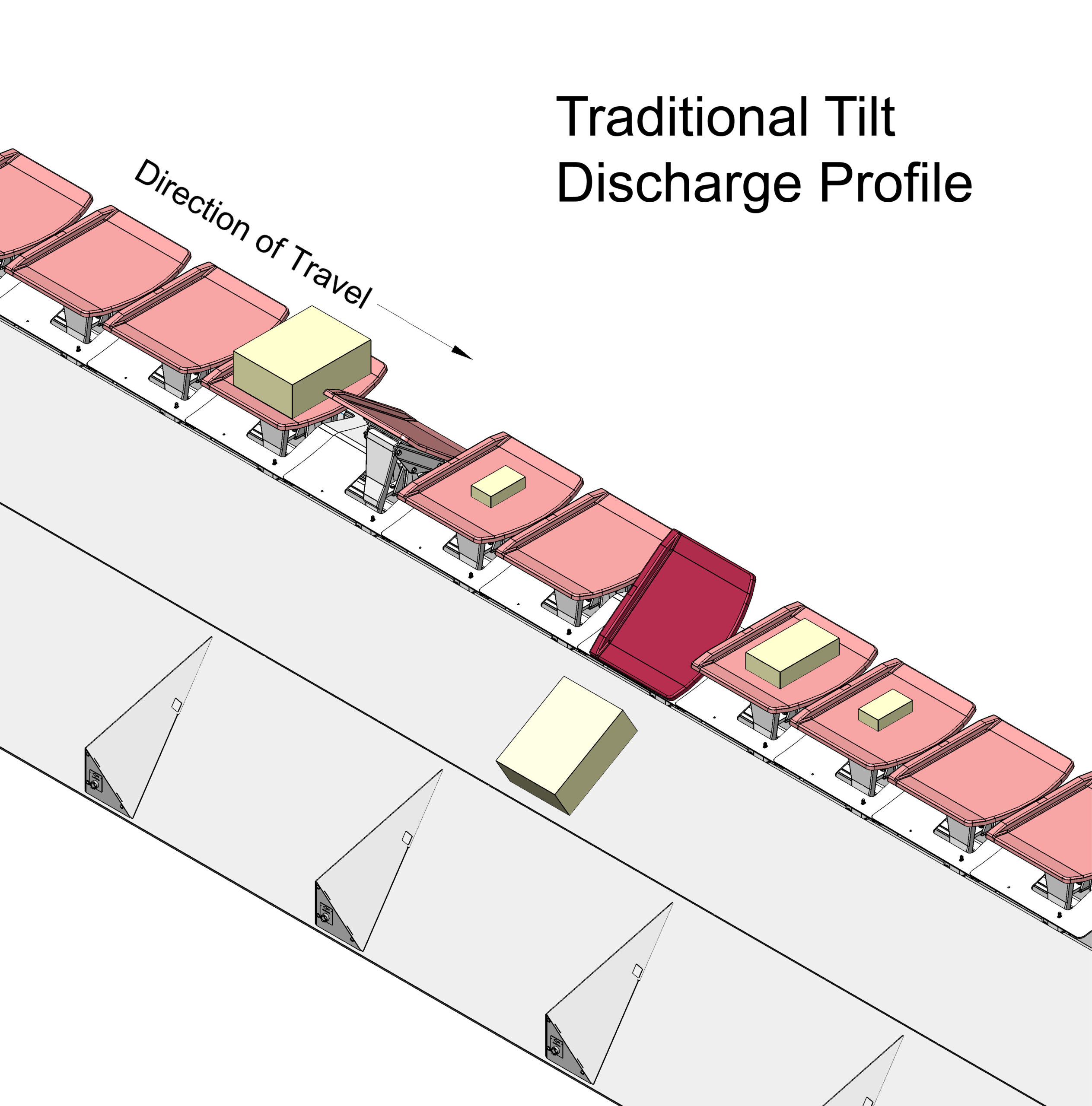

Items are inducted onto each tray, where typical orientation for a single tray load is the longest dimension placed perpendicular to the sorter travel (Cross-Loaded). When the item reaches its destination, the tray is tilted to release the package. The trays are bidirectional and therefore can be tilted to either side. The tilting action is controlled via a 24vdc patented cascade free Tiploc™ mechanism. Through this mechanism, variations in tilting speed due to product placement or product weight are eliminated, allowing a more accurate and fluid tilting action.

Continuously sorting diverse products in diverse locations all over the world. The Mantissa Traditional Tilt-Tray truly is “Sortation Simplified”.

Patented & Proven Technology

  • High Efficiency Green Drive™ technology
  • Cascade error free tipping
  • Tray/Pitch centers from 12”- 46”
  • Aluminum alloy construction
  • Multiple tilt profiles available
  • 24vdc devices, no compressed air requirements
  • Innovative design protected by multiple patents
  • Proven technology with over 25 years in service

Industries Applicable

Our Tilt Tray Sortation System has been used successfully in a variety of industries, including:

Get Started with Mantissa Today

If you’re interested in learning more about Mantissa’s Tilt Tray Sortation System, please don’t hesitate to contact us. Our team of experts can help you determine if our system is the right choice for your business, and we can provide a customized quote based on your specific needs.
