Cross Belt Sorter System

Cross Belt Sorter System

Mantissa’s Cross Belt Sortation System is a highly efficient and flexible solution for sorting packages, parcels, and other goods in a wide range of industries. Our system utilizes advanced technology to ensure accurate and fast sorting of items with varying shapes and sizes, making it ideal for e-commerce, logistics, retail, and manufacturing operations. Our cross belt sorter system is an independent electrically controlled divert mechanism used to accurately discharge products from the sorter. It is the latest sorting technology utilizing the Third Generation Scorpion® sorter Platform. Built to be dependable and reliable, with simplicity in design.

Cross-Belt Sorter Capabilities

The cross-belt provides positive discharge of a wide variety of products from low coefficient items like plastic totes to high coefficient items that may be difficult to handle with other sorting technologies. Easily sorting bags and boxes which range from 3”sq to 44” long, and 6oz. to 110 Lbs. Cart size and pitch are configured to average product sizes, as larger items can be handled across multiple belts. High throughput capacity can be achieved with multiple pitch configurations and operating speeds of up to 3m/s, while maintaining a less than 70db operational environment.

Benefits of Mantissa’s Cross Belt Sortation System

  • Increased Efficiency: Our system can sort up to 14,000 items per hour, which can significantly increase the throughput of your operation and reduce labor costs.

  • Flexibility: Our cross belt sortation system can handle a wide range of item sizes, weights, and shapes, allowing for greater flexibility in your sorting processes.

  • Accuracy: Our system uses advanced sensors and software to ensure accurate and error-free sorting, reducing the risk of mis-sorting or lost items.

  • Reduced Downtime: Our system is designed for minimal maintenance and easy repairs, which can minimize downtime and keep your operation running smoothly.

  • Improved Customer Satisfaction: With accurate and fast sorting, you can ensure that your customers receive their packages on time and in the right condition, improving customer satisfaction and loyalty.

Features of Mantissa’s Cross Belt Sortation System

Advanced Sensor Technology

Our system uses advanced sensors to detect and measure item dimensions, weight, and shape, ensuring accurate and efficient sorting.

Sorting Software

All of our sortation software modules are designed to optimize the sorting process, reducing the risk of errors and improving overall efficiency.

Automated Induction & Diverters

Our automated system components reduce the need for manual intervention and minimize the risk of mis-sorting.

Easy Integration

Our system is designed for easy integration with other systems and equipment, making it easy to upgrade your existing sorting processes.

Mantissa’s Cross Belt Sortation System is a reliable and cost-effective solution for any operation that requires efficient and accurate sorting of items. Contact us today to learn more about how our system can improve your operation’s efficiency and productivity.

How Our Cross Belt Sorter Operates

Items are inducted onto each belt, where typical orientation for a single belt load is the longest dimension placed perpendicular to the sorter travel (Cross-Loaded). Systems with larger packages can be configured to handle items over two consecutive belts, where typical orientation for loading is the longest dimension placed inline (Conventionally loaded) to the sorter travel.  When the item reaches its destination, the belt is energized to release the package.  The belts are bidirectional and therefore can be diverted to either side. The Cross Belt’s divert algorithms are independent of the sortation speed, thus allowing greater flexibility for our customer’s immediate and future requirements.

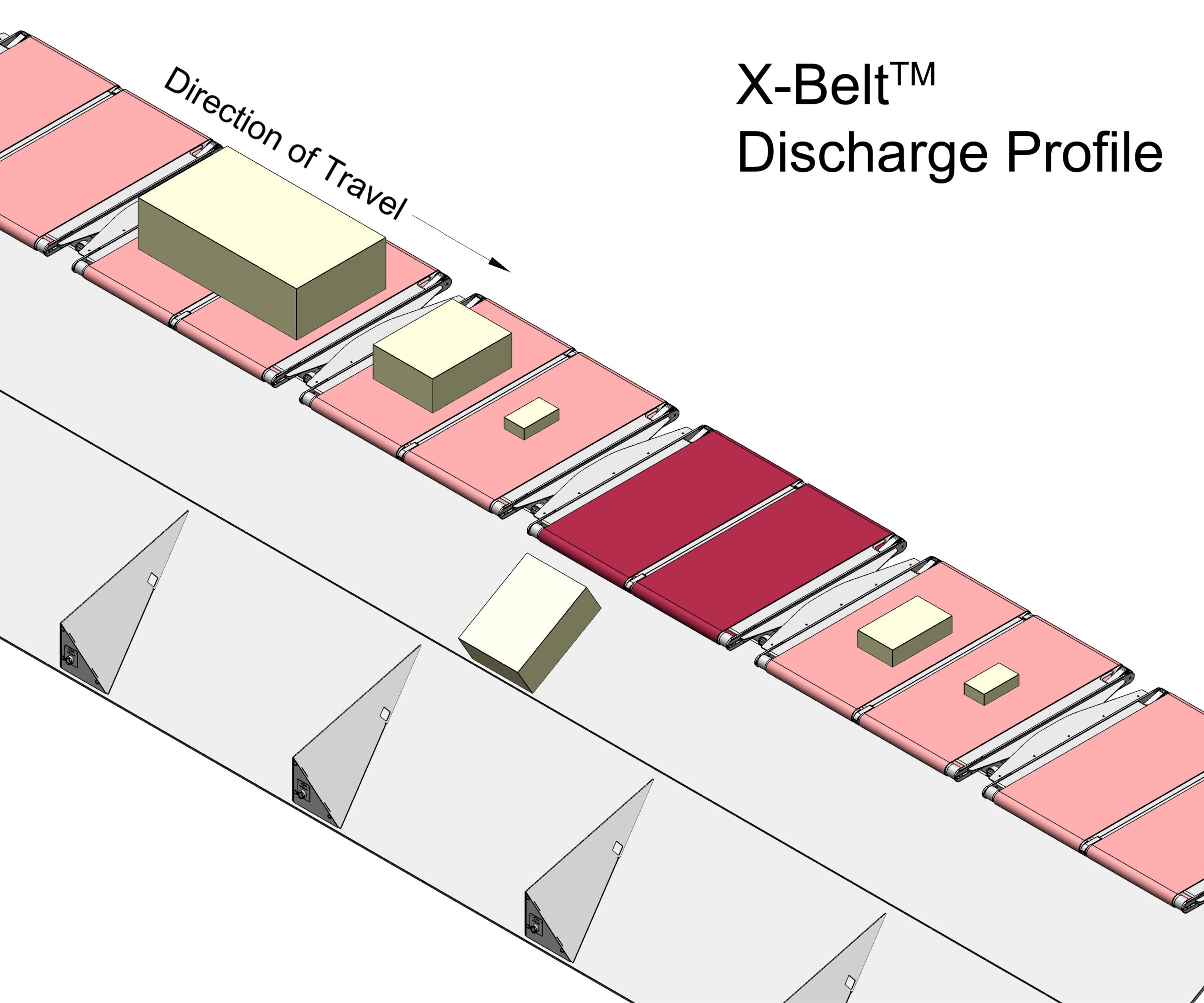

X Belt Discharge Diagram

Patented & Proven Technology

  • High Efficiency Green Drive™ technology
  • Tray/Pitch centers from 12”- 46”
  • Aluminum alloy construction
  • Low Voltage 48vdc design
  • Innovative design protected by multiple patents
  • Proven technology with over 25 years in service

Get Started with Mantissa Today

Don’t let inefficient and inaccurate sorting slow down your operation. Upgrade to Mantissa’s Cross Belt Sortation System today and experience the benefits of increased efficiency, accuracy, and flexibility. Contact us now to schedule a consultation with our experts and learn how our system can improve your sorting processes and boost your bottom line. With Mantissa, you can trust that you are getting a reliable and cost-effective solution for all your sorting needs. Don’t wait, contact us today and take the first step towards a more efficient and productive operation.
